Repairing an STC 4033 with a cracked casting

The STC 4033 cardioid microphone was a stalwart of British broadcasting and an early solution to the the challenge of making a cardioid directional mic. The 4033 contains both dynamic and ribbon elements, and in cardioid mode the microphone blends the two transducers together via a capacitor and inductor – you can read more about the filter and switching circuit at the wonderful website. The mics are still quite popular with some recording engineers, but of course there are no spare parts available after half a century or so.

Omni and Figure 8 suming to a cardioid pattern – from SOS website

I was recently asked to repair a 4033 with a cracked bottom bell, which is made from some kind of zinc alloy. When I took the microphone apart it became clear that the casting had collapsed into several pieces, only held in place by the rest of the microphone. The job looks like a challenge, and we like a challenge.

It isn’t clear how this became so damaged but it is possible that the alloy itself was at fault. Zinc Pest is a notorious cause of failure caused by impurities in zinc alloys, particularly those from the 1930s and 1940s. Like this one.

The alloy is pretty much impossible to solder or weld back together, and I don’t believe that any glue would be strong enough to hold when the mic is bolted back together. A new part is required but impossible to find, so we need to make one, or at least persuade somebody else to make it. Metal casting requires specialist skills and equipment, so I asked Abbey Casting to copy a good part from another 4033, and they did a fantastic job to produce this part in bronze.

The raw casting needs various holes drilling and tapping, but with a little work we have a perfect fit.

The 4033 is not the easiest thing to work on – everything is tightly packaged and the transformer is set in wax into the stem of the mic, so I had to use a hot air gun to dismantle it. Whilst the mic is apart it makes sense to replace that Hunts capacitor* with a nice NOS Mullard, and re-solder all the old joints to lower noise and improve future reliability.

With the new part in place I can put it all back together again.  The casting could be painted or powder-coated to match, but in this case the owner prefers to see the bronze.  These are 50 ohm microphones and work nicely with our impedance matching transformer boxes.

Thanks to Liam at ToeRag Studios & Richard at Abbey Casting.

MOTM – Tannoy Ribbon Microphones Part 2. Cardioid ribbons

Tannoy’s Cardioid ribbon microphones

As well as the bi-directional microphones described in my previous post, Tannoy also produced several cardioid models. In the picture below, the mic on the left is the MD422. I don’t have a model number for the centre and right hand microphones, but they are the same basic microphone inside, with very different grills and bodies.

The internal design of these two microphones is very simple, with a huge heavy horseshoe magnet providing both the magnetic field and creating an internal cavity to help control the pattern. The ribbon pole pieces are simple rectangular steel plates screwed into position.

There is a layer of felt behind the ribbon. I also expected to see the cavity behind the ribbon stuffed with horse-hair or cotton wadding, but in this example it was completely empty. There is a small transformer in the base of the microphone – in this example the output impedance was 2000 ohms, but I’m sure that other output options would have been available.

Despite the size, the output level is rather low.

The MD422 uses the same ribbon motor as the Type 2 bidirectional mic, and we can safely assume that they were contemporary models.
As well as these large cardioid microphones, Tannoy also produced this smaller directional model which looks rather like a dynamic mic:

The motor inside this mic is reminiscent of that from the STC 4104 lip microphone. It uses the same base and connector as the MD422 and MR425 models.

Update March 8th 2015

Tannoy were developing directional ribbon microphones from the mid 1930s onwards. I have never seen this model on the bench, but this sketch appears in Wireless world in September 1937:

Tannoy and the Houses of Parliament

Tannoy ribbon microphones were used in the British Houses of Parliament. According to Chris McClean’s article for the Institute of Professional Sound, twelve ‘brass barrel’ microphones were fitted by Tannoy in 1951, and the system was further upgraded in the 1970s, again by Tannoy, with a system than lasted until 1991.
Here’s the problem: I have seen several of these brass-barrel Tannoy mics on sale that claim to be ex-Parliament. Too many, certainly more than twelve, and some at very inflated prices. Either Parliament kept a huge number of spares (which is possible, I guess), or this model was not exclusive, and was sold elsewhere. I have heard anecdotally of these being salvaged from church PA systems, and also the Canadian government.
Additionally, I have seen, and bought, Type 3 bidirectional Tannoy mics that claimed to be ex-HOP., although when I asked for documentation as proof of the claim, the seller was unwilling or unable to do so. Were these fitted in the 1970’s refurbishment? Again, it is possible, but I have yet to see any proof of this claim. If you know better than please get in touch and show me!
The lesson here, as always, is Caveat Emptor, particularly when buying used microphones.

Update March 8th 2015

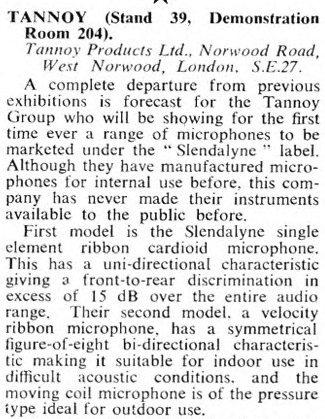

Thanks to one of our readers for sending in a link to this announcement in Tape Recording magazine (1962, issue 5). This adds to the Houses of Parliament microphone debate.

The article announces two new ‘Slendalyne’ ribbon microphones from Tannoy – a cardioid and a bidirectional version. Yet the cardioid version looks very much like the brass-barrel mic that was supposedly installed into the Houses of Parliament 11 years earlier! This sentence is particularly intriguing: ‘Although they have manufactured microphones for internal use before, this company has never made their instruments available to the public before‘. The statement is not quite true as their earlier models were widely available. But this implies that these specific models had previously been supplied to select customers, and became available widely from 1962 onwards.

Thanks to Tom McCluskie, Jamie Neale of Real World Studios, and Marco van der Hoeven of Vintage Mic World, and everyone else for sharing information and photographs of their microphones.
