Thiele Microphones schematics and documents

Thiele, of Liepzig, were one of several manufacturers of tube condenser microphones in post-war Germany, although they are less well known than Neumann, Gefell and Schoeps. Thiele microphones also appeared under the Elektro-Medizin and Wetzel brands.

Thiele M4 microphone

The Thiele M1 (cardioid) and M4 (cardioid and omni) are great looking microphones but feature some frankly bizarre design decisions, most notably the placing of the tube directly behind the capsule, which interferes with the rear pickup whilst simultaneously cooking the PVC on the rear capsule. Of course the manufacturers would never have expected that we would be picking up these mics sixty years on and trying to record with them.

Inside a Thiele M4

In addition, the power supply was built into the base of the mic which can lead to hum issues despite the on-board potentiometer that acts as a ‘null’. This also means that the mic has two cables running from it – one for power and one for audio. Both mics use two-stage head amplifiers based around an ECC83 tube, and both have unbalanced outputs. Here are the official schematics for the M1 and M4 mics.

Thiele M4 microphone circuit

Thiele M1c tube microphone circuit

The M5 seems to have been the ‘Studio’ version, with an external power supply and output transformer for balanced low impedance operation. I haven’t seen a factory schematic for the M5, but this is a drawing that I traced out from a specimen on the bench.

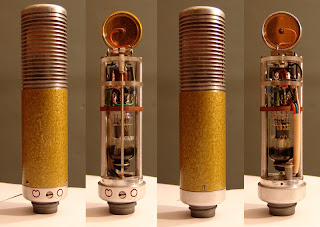

Thiele M5 microphone, inside and out.

Here are some original sales and technical documents from Thiele, in  German.

Thiele sales brochure for M1 and M4

Elektro-Medizin M4 technical document

Elektro-Medizin M4 & M5 product sheet

Many thanks to the Microphone Online Museum for kindly sharing the documents and schematics.

Thiele microphone brochure

Thiele M5 tube microphone
Here’s a scan of a short advertising document for Thiele M4 and M5 (photo to the left) tube microphones.

Theile sales document
Note how expensive the microphones were at the time – 500 and 600 Deutchmarks. For reference, between 1950 and 1960, 4 Deutchmarks approximately equalled 1 US dollar.
